There are two types of moisture barriers used on metal jacketing in mechanical insulation systems; polykraft and polysurlyn that we provide.

1)Polykraft type moisture barrier:

Polykraft is a layer of kraft paper laminated to a single thin layer of polyethylene film. Polykraft consists of one layer polyethylene film with a protective layer of kraft paper. The moisture barrier is factory applied by attaching the jacketing by continuous lamination to the full width of the metal. Aluminium Jacketing equipped with Poly Kraft (Moisture Barrier) with anti corrosion and anti-galvanic properties.

2)Polysurlyn type moisture barrier:

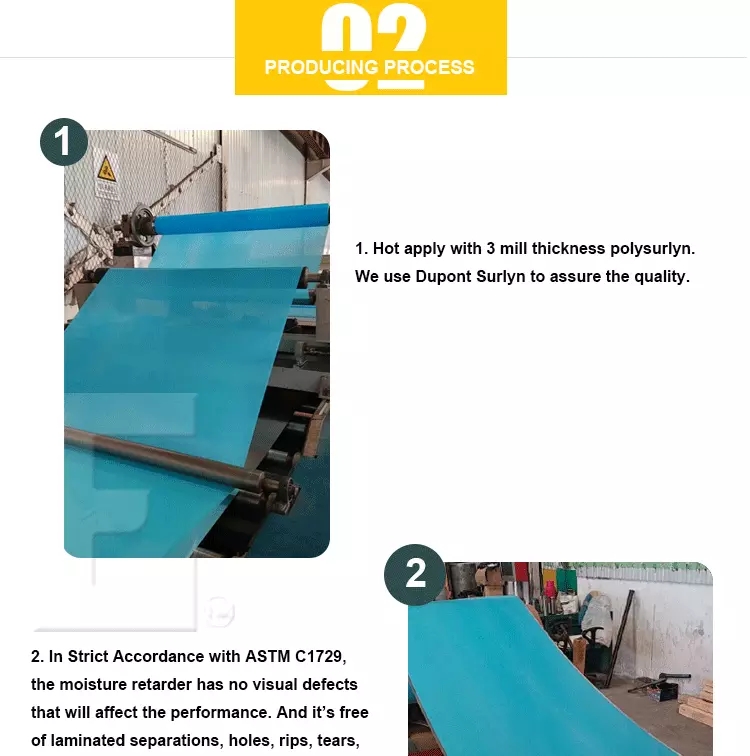

Polysurlyn moisture barrier (PSMB) is a thick three layer film that is applied by laminating the film to the aluminium sheet by a process of heat and pressure. Polysurlyn Moisture Retarder provides an excellent resistance to moisture and has excellent abrasion resistance during installation. Polysurlyn is a high performance solution as it has no pinholes, is a multilayer film, has a very low water vapour transmission rate and a very low water absorption. Additionally, it is tough, scratch resistant and durable.

Specifications of aluminium embossed coils with polysurlyn moisture barrier:
